Principle of Operation:

• Electromagnetic Induction: The pad contains a transmitter coil (primary coil) that, when an electrical current is passed through it, generates an oscillating magnetic field.
• Energy Transfer: When a compatible device with a receiver coil (secondary coil) is placed on or near the pad, the oscillating magnetic field induces a voltage in the receiver coil.
• Power Conversion: This induced voltage is then converted by the device’s internal circuitry into direct current (DC) to charge its battery.

Standardization:

The most prevalent standard for wireless charging is Qi (pronounced “chee”), developed by the Wireless Power Consortium (WPC). A device must be Qi-certified to be compatible with a Qi charging pad.

Key Components:

• Transmitter Coil: The primary coil within the pad that generates the magnetic field.
• Control Electronics: Manages the power flow, regulates the frequency of the magnetic field, and communicates with the receiving device to ensure efficient and safe charging. This includes foreign object detection (FOD) to prevent heating of metal objects placed on the pad.
• Enclosure: A housing, typically made of plastic, rubber, or sometimes more premium materials like metal or fabric, that protects the internal components and provides a non-slip surface for the device.
• Power Input: A port (e.g., USB-C, Micro-USB, or a proprietary power jack) to connect the pad to a power source, such as a wall adapter.

Types and Form Factors:

• Single-Device Pad: Designed to charge one device at a time, often with a specific charging sweet spot.

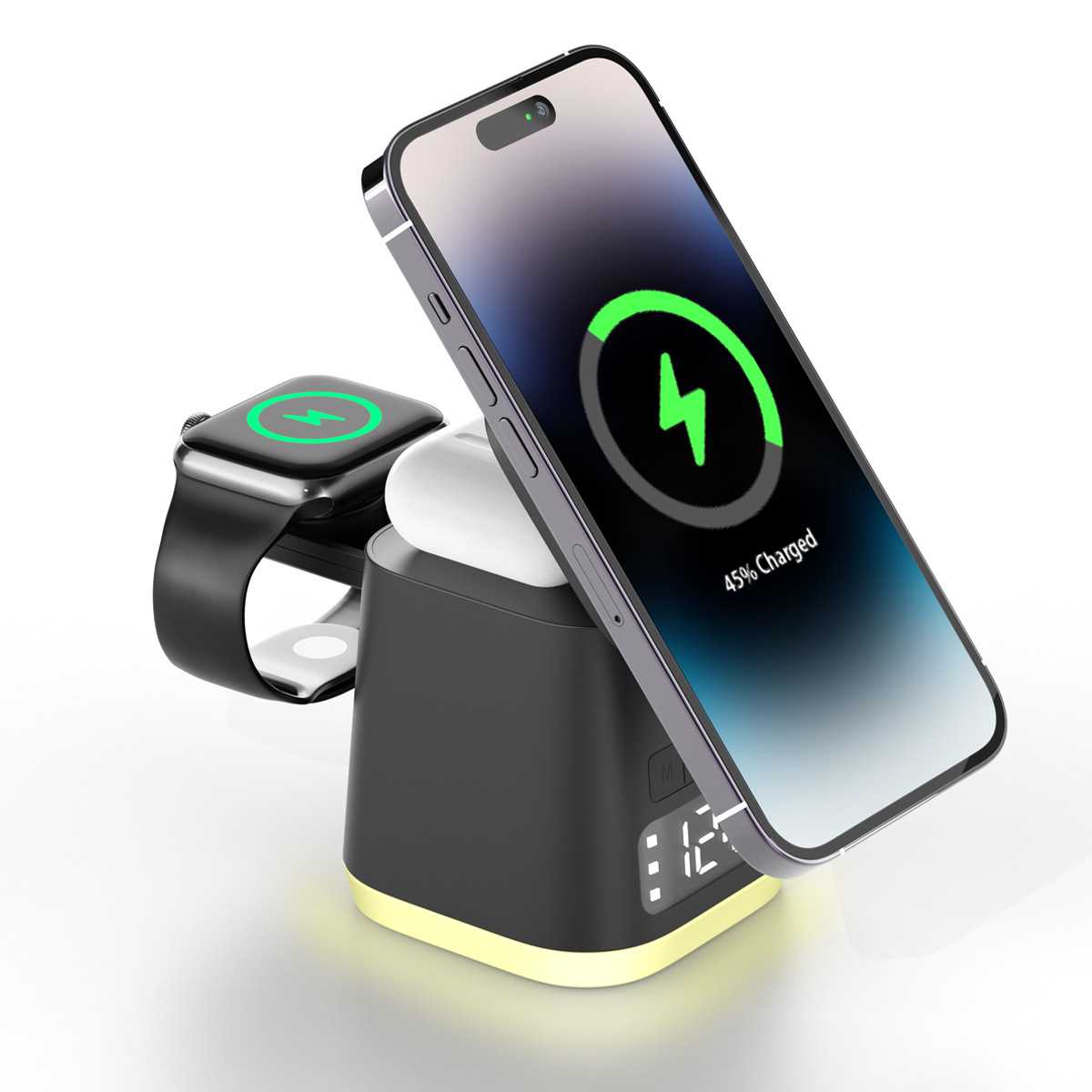

• Multi-Device Pad: Features multiple coils or a larger charging area to accommodate and charge two or more devices simultaneously.
• Charging Stands: A variant of the pad where the device is held upright, allowing for easier screen viewing while charging.
• Integrated Chargers: Wireless charging technology is often integrated into furniture (e.g., desks, nightstands) or vehicles.

Performance and Efficiency:

• Wireless charging is generally less efficient than wired charging, with some energy lost as heat during the electromagnetic transfer process. Efficiency can range from 70% to 85%.
• Charging speed is determined by the wattage output of the pad (e.g., 5W, 7.5W, 10W, 15W). A higher wattage typically results in faster charging for compatible devices.

Advantages:

• Convenience: Eliminates the need to plug and unplug cables, reducing wear and tear on device ports.
• Durability: Fewer physical connections mean a reduced risk of broken or frayed charging cables.

Disadvantages:

• Efficiency: Lower efficiency compared to wired charging, leading to some energy waste.
• Charging Speed: Generally slower than high-wattage wired charging solutions.
• Limited Mobility: The device must be stationary and in close proximity to the pad to charge.
